Source components are shown only in advanced view. Click the Advanced button to switch to advanced view, then click the A/B/C/D button to view detailed parameters for the selected source.
The source edit window is opened by clicking the Edit button on any source subpage. Click the close window icon (X) at the top right to close the window.
The source inspector is divided into three main parameter groupings: global and source parameters, group parameters, and zone parameters. See Inspector group controls and Inspector zone controls.

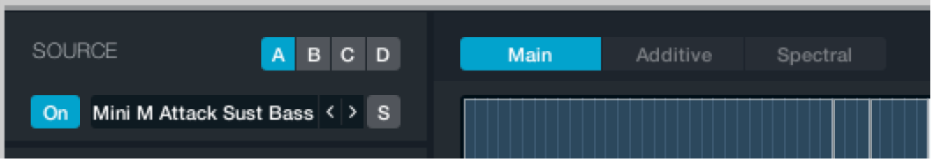

Inspector global parameters
A/B/C/D buttons: Select the corresponding source.
Main/Additive/Spectral buttons: Open the Main, Additive, or Spectral edit window. Click the X icon at the top right of the active window to close it.
On/Off button: Enable or disable the source selected with the A/B/C/D buttons.
Source select field: Displays the name of the current source audio data. Click to open a pop-up menu with a number of source content handling commands. You can also click the Previous and Next buttons (the arrows) to step through available waveform data. See Source master controls and Import browser.
Solo button: Solo the source selected with the A/B/C/D buttons. All other sources are muted.
