Add mathematical equations

You can include mathematical expressions and equations in your document. To add an equation, you compose it in the Pages equation dialog using LaTeX commands or MathML elements, then insert the equation into your document.

Note: If you’ve installed MathType 6.7d (or later), an application for composing math expressions, you can use it to create equations by clicking symbols and typing in the MathType window.

Add an equation with LaTeX or MathML

  1. To add an equation, place the insertion point in any of the following places:

    • In a table cell or a page header or footer in either a word-processing or page layout document.

    • In body text in a word-processing document.

    You can also select text you want the equation to precede.

  2. Click the Insert button in the toolbar, then choose Equation.

    Or you can choose Insert > Equation (from the Insert menu at the top of your screen).

  3. If you have MathType installed, a dialog appears asking whether to use Pages to create the equation; click Use Pages.

  4. Enter an equation in the field using LaTeX commands or MathML elements.

    When you finish typing, a preview of the equation appears below the field. If the preview is empty or displays an error, check your equation to make sure it’s correct.

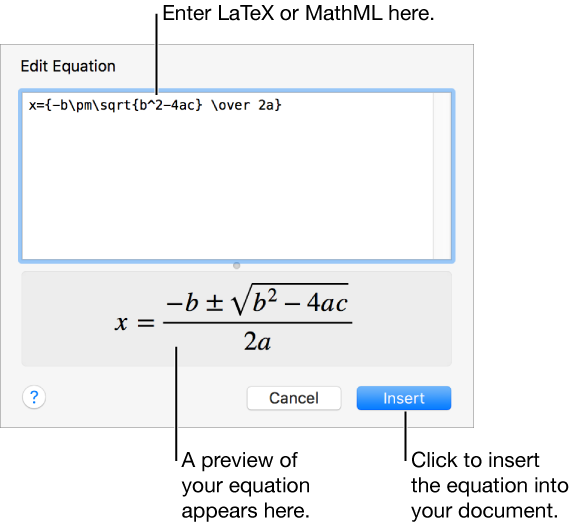

    The Edit Equation dialog, showing the quadratic formula written using LaTeX in the Edit Equation field, and a preview of the formula below.

    For information on using supported LaTeX commands or MathML elements and attributes, see the Apple Support article About LaTeX and MathML support.

  5. Click Insert.

    The equation appears at the insertion point in your document (or before the selected text). The equation is an inline object, the same size and color as the surrounding text. If you change the size or color of the surrounding text, the size and color of the equation’s font also change.

Add an equation with MathType

If you have MathType 6.7d (or later) installed, you can use it to add equations to your document.

Tip: To set MathType as the default equation editor, choose Pages > Preferences (from the Pages menu at the top of your screen), click General, then select the checkbox next to “Insert and edit equations with MathType.”

  1. To add an equation, place the insertion point in any of the following places:

    • In a table cell or a page header or footer in either a word-processing or page layout document.

    • In body text in a word-processing document.

    You can also select text you want the equation to precede.

  2. Click the Insert button in the toolbar, then choose MathType Equation.

    If you set MathType as your default equation editing tool, MathType opens automatically (after the first time you enter an equation). Otherwise, click Use MathType in the dialog that appears.

  3. To enter the equation, click symbols and type in the MathType window.

    For instructions on using the MathType tools, see MathType Help.

    A preview of the equation appears below the box. If the preview is empty or displays an error, check your equation to make sure it’s correct.

  4. To save your equation, choose File > Close and Return to Pages (from the File menu at the top of your screen), then click Yes in the dialog that appears.

    The equation appears as an inline object at the insertion point and is the same size and color as the surrounding text. Changing the font of the surrounding document text doesn’t change the equation’s font. To change the look of the equation’s text in the MathType window, double-click controls at the bottom of the window.

Edit, delete, or move an equation

After you add an equation, you can modify it. How you change an equation in a document depends on whether it’s a word-processing or page layout document.
