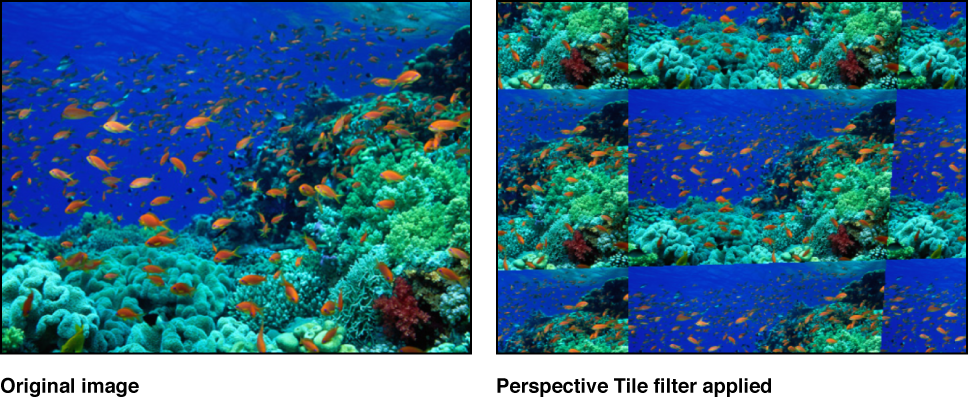

Endlessly tiles an image, mapping it onto a grid that can be positioned in simulated 3D space. Use Perspective Tile to create an endlessly repeating video wall stretching off into the distance.
Adjust this filter using the parameter controls in the Filters Inspector:
Top Left: Sets the position of the top-left corner of the grid.
Top Right: Sets the position of the top-right corner of the grid.
Bottom Right: Sets the position of the bottom-right corner of the grid.
Bottom Left: Sets the position of the bottom-left corner of the grid.
Note: Drag the onscreen control handles to adjust the Top Left, Top Right, Bottom Right, and Bottom Left values.
Mix: Sets the percentage of the original image to be blended with the filtered image.
Publish OSC: Publishes the filter’s onscreen controls in Final Cut Pro X. For more information on creating content for use in Final Cut Pro, see Final Cut Pro templates overview.
