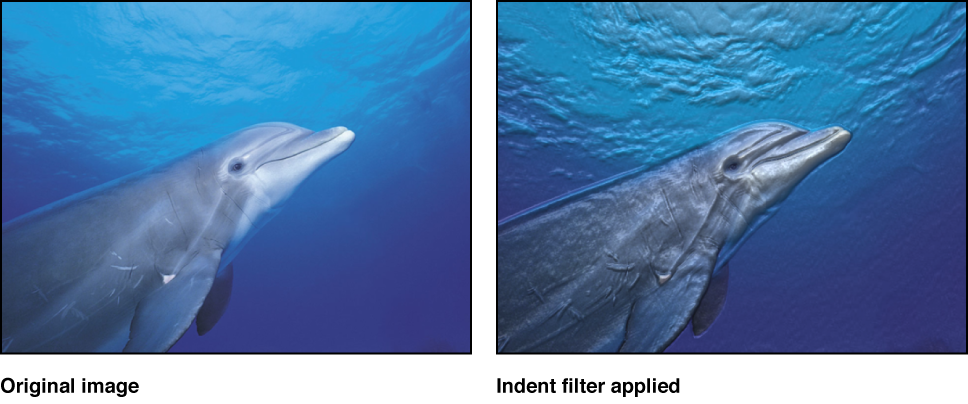

Creates a shiny, bump-mapped effect, giving the appearance of depressed and flat areas in the image.
Adjust this filter using the parameter controls in the Filters Inspector:
Softness: Sets the softness of the transition between flat and raised areas.
Brightness: Sets the level of brightness of the image.
Ambient: Sets the amount of ambient light hitting the image.
Highlight Brightness: Sets the amount of brightness applied to highlights of the image.
Highlight Sharpness: Sets the degree of sharpness applied to highlights of the image.
Light Rotation: Sets the angle, in degrees, at which the ambient light hits the image.
Depth: Sets the amount of depth between flat and raised areas.
Height Map: Displays a thumbnail of the height map chosen. If present, the height map is used to determine the flat and raised areas of the layer.
Map Channel: Sets the channel from the image used to determine the flat and raised areas of the image. If a height map is present, the channel is selected from the height map. Otherwise, values include Luminance (default), Red, Green, Blue, or Alpha.
Stretch To Fit: Sets whether the Height Map is stretched to fit the dimensions of the filtered layer.
Height Map X Scale: Sets the scaling used to determine the width of the Height Map. This parameter becomes available when the Stretch To Fit checkbox is deselected.
Height Map Y Scale: Sets the scaling used to determine the height of the Height Map. This parameter becomes available when the Stretch To Fit checkbox is deselected.
Height Map X Offset: Sets the amount of offset used to position the Height Map horizontally. This parameter becomes available when the Stretch To Fit checkbox is deselected.
Height Map Y Offset: Sets the amount of offset used to position the Height Map vertically. This parameter becomes available when the Stretch To Fit checkbox is deselected.
Mix: Sets the percentage of the original image to be blended with the filtered image.
