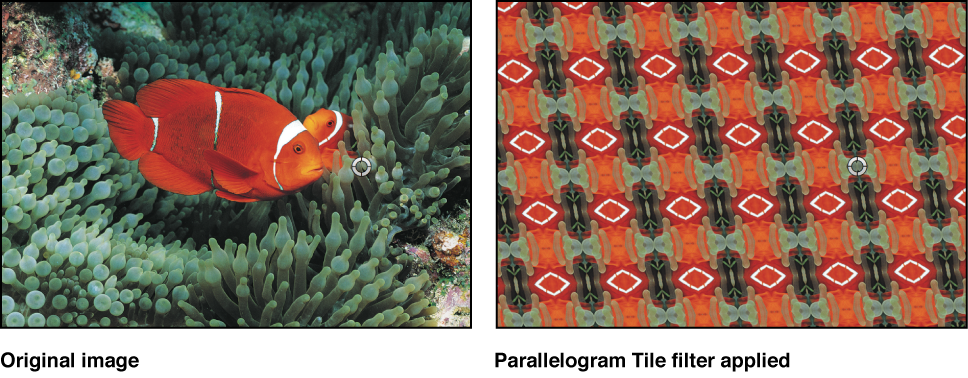

Simulates looking through a kaleidoscope with facets made of parallelograms. This filter is not automatically animated, but by animating the Angle parameter you can simulate twisting kaleidoscope imagery.
Adjust this filter using the parameter controls in the Filters Inspector:
Center: Sets the position of the origin of the parallelogram tiles. You can also drag the Center onscreen control in the Canvas.
Angle: Sets the angle of rotation of the panels.
Acute Angle: Sets the acute angle at which the parallelogram sides meet.
Tile Size: Sets the size of the panels.
Mix: Sets the percentage of the original image to be blended with the filtered image.
Publish OSC: Publishes the filter’s onscreen controls in Final Cut Pro X. For more information on creating content for use in Final Cut Pro, see Final Cut Pro templates overview.
