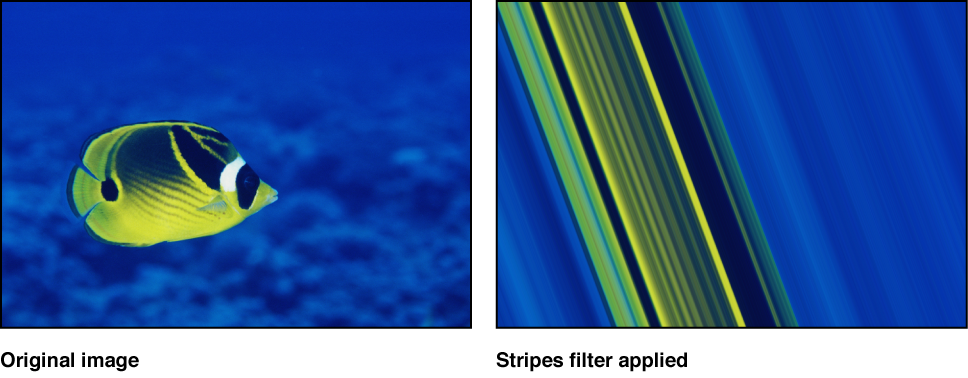

Turns an image into a series of vertical stripes. The angle of generated stripes can be changed using the Angle parameter. The stripe colors are derived from pixel values along a line through the center point at the angle specified by the Angle parameter. The distribution of colors is determined by the Offset parameter.
Adjust this filter using the parameter controls in the Filters Inspector:
Center: Sets the position of the center of the stripe effect. You can also drag the Center onscreen control in the Canvas.
Angle: Sets the angle of the stripes. You can also drag the outer handle of the onscreen control in the Canvas.
Offset: Sets the angle of pixel sampling used for sampling pixel color values.
Mix: Sets the percentage of the original image to be blended with the striped image.
Publish OSC: Publishes the filter’s onscreen controls in Final Cut Pro X. For more information on creating content for use in Final Cut Pro, see Final Cut Pro templates overview.
