Play drums and adjust kit piece settings

Drum Kit Designer shows a 3D representation of the drum kit for the currently loaded patch or plug-in setting.

For all kits, you can play the drums; edit the pitch, sustain, and volume of each drum kit piece; and exchange the kick and snare drums. When working with Producer Kits, you can additionally exchange toms, cymbals, and hi-hat. Producer Kits also let you turn different microphones, such as overheads or room mics, on or off.

Drum Kit Designer also provides additional settings for adjusting the gain of other instrument pieces, such as the shaker, cowbell, and so on.

Play a drum

Click a drum.

The first time you click any drum after opening the plug-in, one or two panels open. You can exchange individual drums in the Exchange panel to the left, and edit individual kit piece settings in the Edit panel to the right.

Adjust kit piece settings (all kits)

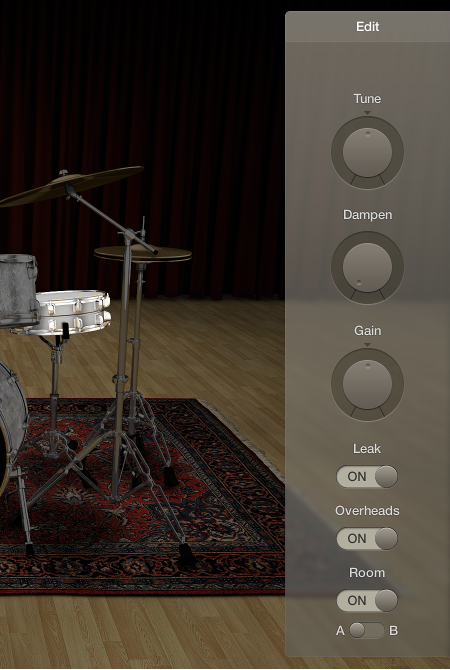

Click a drum.
The Edit panel opens to the right.
- Toms: Click the tab for the tom you want to edit, or click the All tab to adjust the tone of all toms.
- Cymbals: Click the tab for the crash cymbal you want to edit, or click the All tab to adjust the tone of both crash cymbals. The ride cymbal can be edited directly.
- Kicks and snares: There are no tabs, so make your adjustments with the controls.
Do any of the following to adjust settings:
- To adjust the pitch: Drag the Tune knob vertically, or double-click the field and enter a new value.
- To adjust the amount of damping: Drag the Dampen knob vertically, or double-click the field and enter a new value.
- To adjust the volume: Drag the Gain knob vertically, or double-click the field and enter a new value.
Click anywhere in the plug-in window background to close the panels.

Adjust mic settings (Producer Kits only)

In the Edit panel, do any of the following:

To include the sound in the mic of the other kit pieces: Turn the Leak switch on.
This turns microphone bleed on or off, where the sound of a kit piece is picked up by the different mics from other kit pieces.
To include the kit piece’s overhead mic in the sound: Turn the Overheads switch on.
This turns the overhead mic for the selected kit piece on or off.
To choose between two different room microphone setups: Choose between rooms A and B. You can also turn the room microphones off.
Rooms A and B determine which room mic setup is used with the kit piece.

Adjust the volume of other percussion instruments

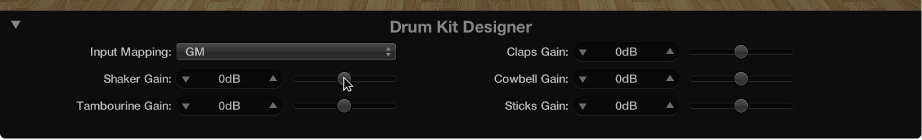

Click the disclosure triangle at the bottom-left corner of the plug-in window to show additional settings.
Drag the slider (or drag vertically in the field) to adjust the volume of the corresponding instrument:
- Shaker Gain
- Tambourine Gain
- Claps Gain
- Cowbell Gain
- Sticks Gain
