Depending on the status of each Signal Flow button, the output signals of both oscillators, the ring modulator, and the noise generator are routed to the Output section of Ultrabeat. This routing is either direct or through the Filter and Distortion section.

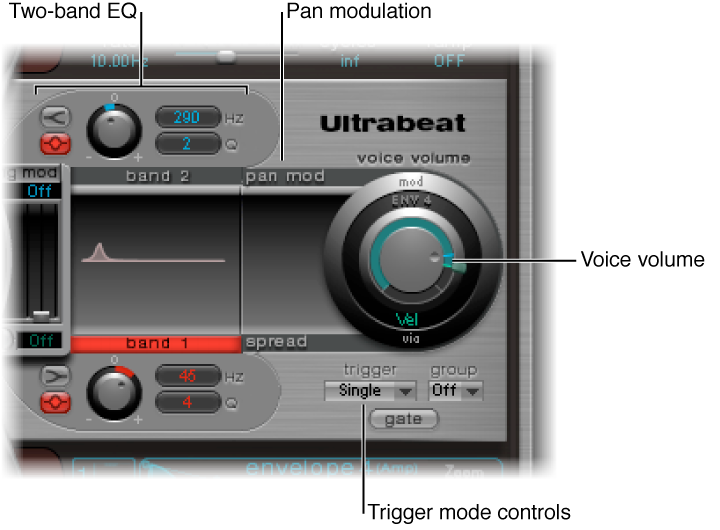

The Output section passes signals through both equalizers (EQ), then on to the Pan Modulation/Stereo Spread section (in a preconfigured order) before the final level is set for the selected sound and the trigger behavior is adjusted.
Two-band EQ: Provides precise tonal control of each drum sound.
Pan Modulation and Stereo Spread parameters: Pan Modulation varies the panorama position of a drum sound. Stereo Spread broadens the stereo image.
Voice volume: Sets the default level of each drum sound.
Trigger Mode controls: Determine the way that Ultrabeat reacts to incoming MIDI notes. This is independently defined for each sound.
