In Analyzer mode, the main display shows the frequency spectrum of the input signal as 31 independent frequency bands. Each frequency band represents one-third of an octave. The Analyzer parameters are used to activate Analyzer mode and to customize the appearance of the incoming signal in the main display.

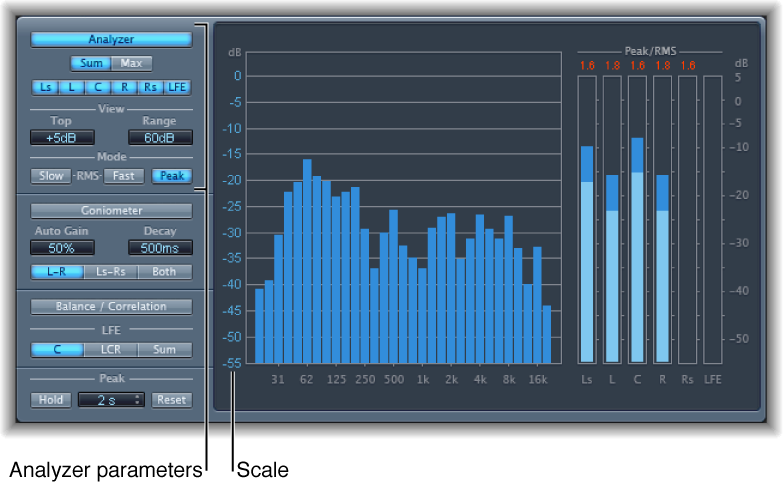

Surround MultiMeter Analyzer parameters
Analyzer button: Switch the main display to Analyzer mode.
Sum and Max buttons: Show the summed or maximum level in the Analyzer results in the main display. These buttons are relevant only when multiple channels are selected with the channel buttons.
Channel buttons: Select one or multiple channels for metering. The number and appearance of these buttons vary when different surround output configurations are chosen.
View fields: Change the value display in the Analyzer by setting the maximum level (Top) and the overall dynamic range (Range).
Mode buttons: Determine how levels are displayed. You can choose Peak, Slow RMS, or Fast RMS characteristics.
The two RMS modes show the effective signal average and provide a representative overview of perceived volume levels.
The Peak mode shows level peaks accurately.
Scale (shown in the main display): Indicates the scale of levels. Drag the scale vertically to adjust. Changing the scale is useful when you are analyzing highly compressed material because it makes it easier to identify small level differences.
