The tracking oscillator follows the pitch of incoming monophonic audio signals and mirrors these pitches with a synthesized sound. The FM tone generator for the tracking oscillator consists of two oscillators, each of which generates a sine wave. The frequency of Oscillator 1, the carrier, is modulated by Oscillator 2, the modulator, which deforms the sine wave of Oscillator 1. This results in a waveform with rich harmonic content.
Important: The parameters discussed in this section are available only if the Synthesis In menu is set to Osc. See EVOC 20 TrackOscillator Synthesis in parameters.

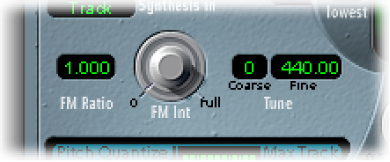

Tracking oscillator parameters
FM Ratio field: Set the ratio between Oscillators 1 and 2, which defines the basic character of the sound. Even-numbered values or their multiples produce harmonic sounds, whereas odd-numbered values or their multiples produce inharmonic, metallic sounds.
An FM Ratio of 1.000 produces results resembling a sawtooth waveform.
An FM Ratio of 2.000 produces results resembling a square wave with a pulse width of 50%.
An FM Ratio of 3.000 produces results resembling a square wave with a pulse width of 33%.
FM Int knob: Determine the intensity of modulation. Higher values result in a more complex waveform with more overtones.
At a value of 0, the FM tone generator is disabled and a sawtooth wave is generated.
At values above 0, the FM tone generator is activated. Higher values result in a more complex and brighter sound.
Coarse Tune field: Set the pitch offset of the oscillator in semitones.
Fine Tune field: Set the pitch offset in cents. One cent equals 1/100 of a semitone.
