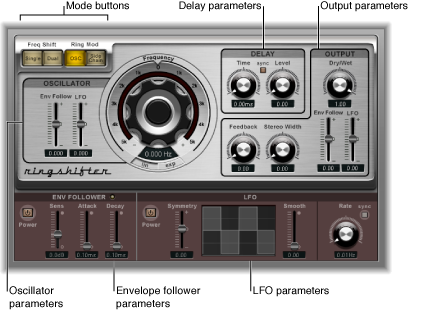

The Ringshifter interface consists of six main sections.
Mode buttons: Determine whether Ringshifter operates as a frequency shifter or a ring modulator. See Set the Ringshifter mode.
Oscillator parameters: Configure the internal sine wave oscillator, which modulates the amplitude of the input signal in both of the frequency shifter modes as well as in the ring modulator OSC mode. See Ringshifter oscillator parameters.
Delay parameters: Delay the effect signal. See Ringshifter delay parameters.
Envelope follower parameters: Modulate the oscillator frequency and output signal with an envelope follower. See Ringshifter envelope follower modulation.
LFO parameters: Modulate the oscillator frequency and output signal with an LFO. See Ringshifter LFO modulation.
Output parameters: Set feedback, stereo width, and the amount of dry and wet signals. See Ringshifter output parameters.
